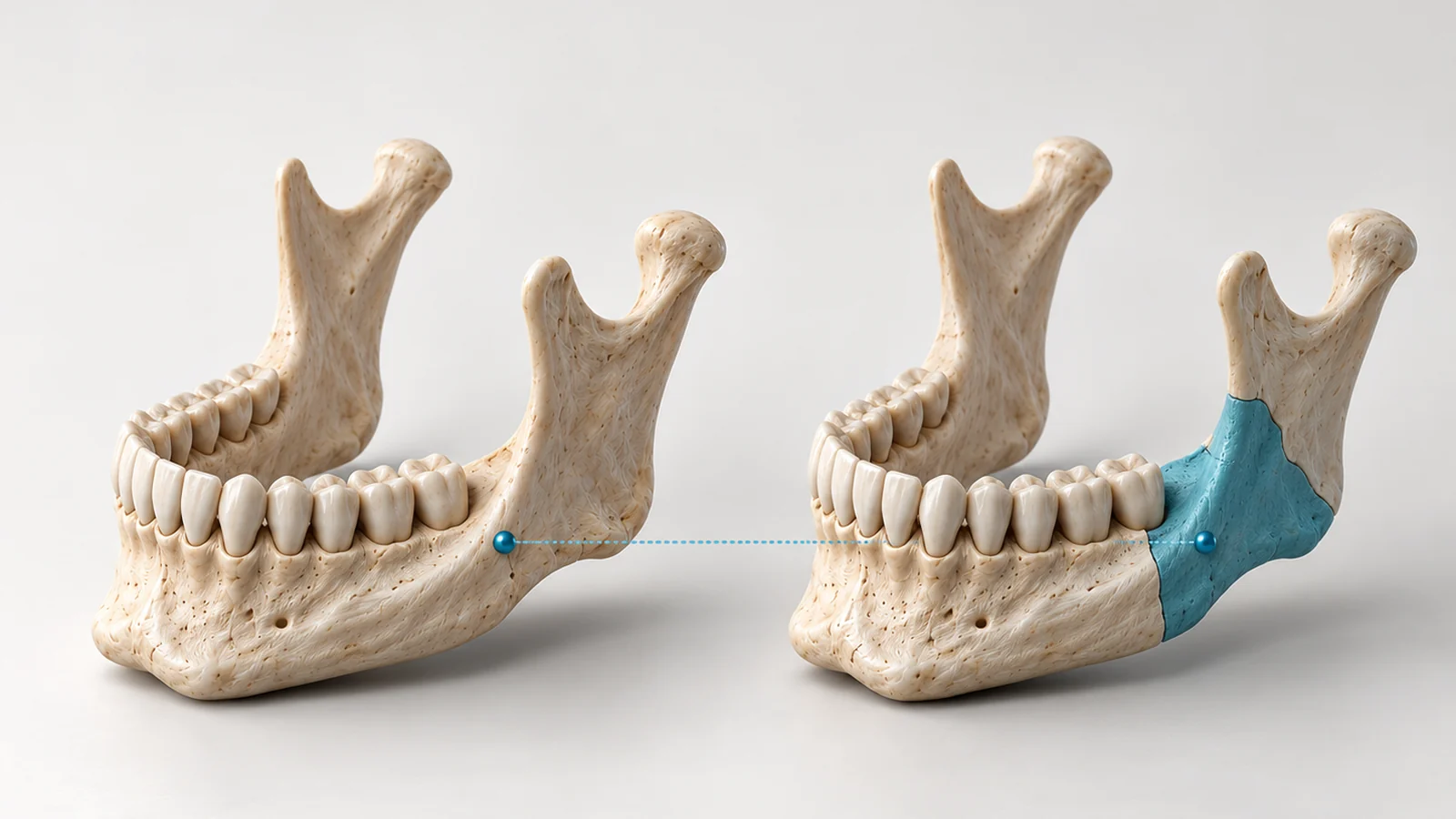

Compare the surgical plan against the post-operative result, case by case
The pre-operative plan and the post-operative imaging are brought into a common frame and compared. Deviation is reported per segment and per case, then summarised across the series.
A reviewer asks first how the two datasets were aligned. The registration method and its residual error are reported beside every deviation figure.
What is delivered
- Per-case deviation between planned and achieved position, by segment
- The registration method used and its residual error, reported per case
- A deviation map per case, and a summary table across the cases in the study
- Methods text describing alignment and measurement
Method and reporting
- Surface registration on an unchanged reference region, so the structure being measured never drives its own alignment
- Deviation reported as a distribution with percentiles, and as linear and angular components per segment
What you provide
- The pre-operative plan, in the form it was delivered
- De-identified post-operative imaging
- Which segments or structures the study is about
How this is kept honest
Reported Registration
Each deviation figure carries the registration used and its residual error. The report says which reference region it was aligned on.
Checked Fit
A registration that converges on a flat surface can report a small error while sitting millimetres out. Each fit is checked, not assumed.
Direction and Magnitude
Movement is reported against anatomy, with direction stated. A magnitude alone cannot tell an advancement from a setback.
Frequently Asked
- What if the plan was not made by Osteo3d?
- That is fine. The plan is needed in a form that carries the intended positions, and the post-operative imaging must cover the same anatomy. Both are checked before the study is quoted.
- Which procedures are supported?
- Mandibular reconstruction including free fibula transfer, orthognathic surgery, cranioplasty and cranial remodelling are within scope. Each study is assessed against the imaging and the plan format before it is quoted.
